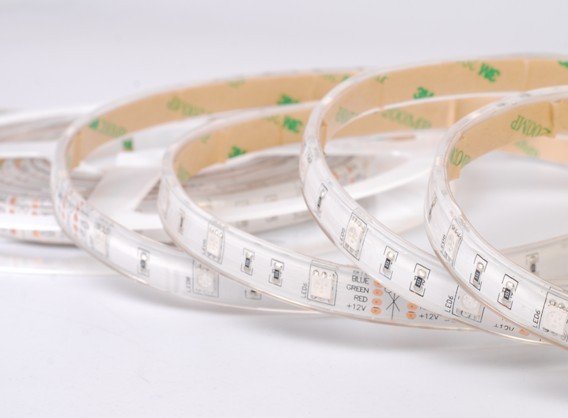

Waterproof SMD5050 Flexible LED Strip with Silicon
Waterproof SMD 5050 Flexible LED Strips with Silicone Tube and Silicone Glue
Part Number
|
Color
|
LED Q'ty
|
Λd(nm)
/Tc(K)
|
Luminous Flux (lm)
|
Work
Voltage
|
Power
|
Waterproof
Grade
|
PCB
Dimensions
|
IL-F5050-D15-R-12
|
Red
|
30led/m
|
620-630
|
130-150
|
DC12V
|
7.2W/m
|
IP68
|
500×10×0.22mm
|
IL-F5050-D15-Y-12
|
Yellow
|
30led/m
|
585-595
|
130-150
|
DC12V
|
7.2W/m
|
IP68
|
500×10×0.22mm
|
IL-F5050-D15-B-12
|
Blue
|
30led/m
|
455-470
|
110-130
|
DC12V
|
7.2W/m
|
IP68
|
500×10×0.22mm
|
IL-F5050-D15-G-12
|
Green
|
30led/m
|
510-525
|
230-250
|
DC12V
|
7.2W/m
|
IP68
|
500×10×0.22mm
|
IL-F5050-D15-P-12
|
Pure White
|
30led/m
|
6000-7000K
|
400-420
|
DC12V
|
7.2W/m
|
IP68
|
500×10×0.22mm
|
IL-F5050-D15-W-12
|
Warm White
|
30led/m
|
3000-3500K
|
310-330
|
DC12V
|
7.2W/m
|
IP68
|
500×10×0.22mm
|
IL-F5050-D15-C-12
|
RGB
|
30led/m
|
620-630
585-595
455-470
|
40-50
100-110
35-45
|
DC12V
|
7.2W/m
|
IP68
|
500×10×0.22mm
|
Features of 5050 LED strip light :
1. TOP SMD 5050 Super bright LED as lighting sources
2. Different colors are available
3. Input voltage: DC12V, Every 3-LED are cuttable for 12V strips
4. Matching middle-connector & suitable driver
5. Packing: 5m/reel in an anti-static package; White, Black, Yellow PCB Board are available
6. Waterproof: Non-Waterproof; Waterproof Grade: IP45
7. LED Q'ty: 150LEDs/roll
8. PCB Dimension: 500×10×0.22mm
9. View Angle: 120°
10. Certification: CE RoHS
Structure of product :
Different Waterproof type are available :
A type: Non-Waterproof
B type: Waterproof material with Single-Side Glued ----------------------------------------------------IP65
C type: Waterproof material with Silicone Tube ----------------------------------------------------------IP67
D type: Waterproof material with Silicone Silicone Glue + Silicone U type groove -------------IP68
E type: Waterproof material with Silicone Glue + Silicone Tube ------------------------------------IP68
![LED Strip Light](http://www.denoled.com/products/images/waterproof-led-strip-30.jpg)
Applications of 5050 LED strip light :
﹡ Amusement park, theater & aircraft cabin mood lighting
﹡ Auditorium walkway lighting
﹡ Cove lighting
﹡ Architectural lights for canopy, corridor, window, archway
﹡ Backlight or edge lighting for signage
﹡ DIY lights for home use
﹡ Concealed lighting
﹡ Path and contour marking
﹡ Decorative lights for holiday, event, show, exhibition.
Note of 5050 LED Strip light :
• Please make LED drivers compatible with 5050 LED strips light before use LED strips.
• To use 5050 LED strip light 5M in serial, longer than 5M in parallel.
• Before use, first check the power supply used in compliance with of the power requirements.
• Each roll ask for independent power supply; not to use of multi-volume series use.
