All Zodiac products can work with our Dimmer Controllerto achieve more effects.
These LED strip lights are amazingly bright and are available in RGB, blue, green, red, pure white, warm white, cool white and yellow,version!
|
Part Number
|
Color
|
LED Q'ty
|
Λd(nm)
/Tc(K)
|
Luminous Flux (lm)
|
Work
Voltage
|
Power
|
Grade
|
Dimensions(mm)
|
|
IL-F5050-B15-R-12
|
Red
|
30led/m
|
620-630
|
130-150
|
DC12V
|
7.2W/m
|
IP65
|
500×10×0.33
|
|
IL-F5050-B15-Y-12
|
Yellow
|
30led/m
|
585-595
|
130-150
|
DC12V
|
7.2W/m
|
IP65
|
500×10×0.33
|
|
IL-F5050-B15-B-12
|
Blue
|
30led/m
|
455-470
|
110-130
|
DC12V
|
7.2W/m
|
IP65
|
500×10×0.33
|
|

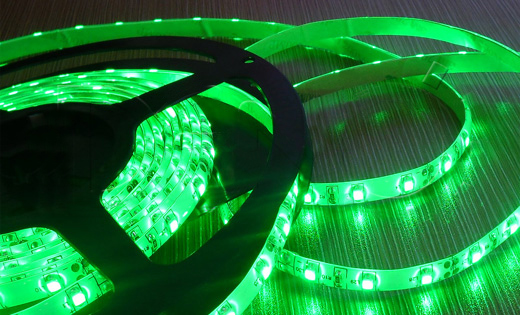

IL-F5050-B15-G-12
|
Green
|
30led/m
|
510-525
|
230-250
|
DC12V
|
7.2W/m
|
IP65
|
500×10×0.33
|
|
IL-F5050-B15-P-12
|
Pure White
|
30led/m
|
6000-7000K
|
400-420
|
DC12V
|
7.2W/m
|
IP65
|
500×10×0.33
|
|
IL-F5050-B15-W-12
|
Warm White
|
30led/m
|
3000-3500K
|
310-330
|
DC12V
|
7.2W/m
|
IP65
|
500×10×0.33
|
|
IL-F5050-B15-C-12
|
RGB
|
30led/m
|
620-630
585-595
455-470
|
40-50
100-110
35-45
|
DC12V
|
7.2W/m
|
IP65
|
500×10×0.33
|
Features
1. TOP SMD 5050 Super bright LED as lighting sources
2. Different colors are available
3. Input voltage: DC12V
4. Every 3-LED are cuttable for 12V strips
5. Packing: 5m/reel in an anti-static package
6. Waterproof type: with Single-side Glued
7. Waterproof Grade: IP67
8. LED Q'ty: 150LEDs/roll
9. Dimension: 500×10×0.33mm
10. View Angle: 120°
11. Certification: CE RoHS
Different PCB Color are available:
Different Waterproof type are available :
A type: Non-Waterproof
B type: Waterproof material with Single-Side Glued -----------------------------------------------IP65
C type: Waterproof material with Silicone Tube -----------------------------------------------------IP67
D type: Waterproof material with Silicone Silicone Glue + Silicone U type groove --------IP68
E type: Waterproof material with Silicone Glue + Silicone Tube -------------------------------IP68
Applications:
﹡ Amusement park, theater & aircraft cabin mood lighting
﹡ Auditorium walkway lighting
﹡ Cove lighting
﹡ Architectural lights for canopy, corridor, window, archway
﹡ Backlight or edge lighting for signage
﹡ DIY lights for home use
﹡ Concealed lighting
﹡ Path and contour marking
﹡ Decorative lights for holiday, event, show, exhibition.
Note:
• Please make LED drivers compatible with 5050 LED strips light before use LED strips.
• To use 5050 LED strip light 5M in serial, longer than 5M in parallel.
• Before use, first check the power supply used in compliance with of the power requirements.
• Each roll ask for independent power supply; not to use of multi-volume series use.
