Non-Waterproof SMD 5050 Flexible LED Strips

Non-Waterproof SMD 5050 Flexible LED Strips --- 30LEDs/meters



Part Number Color LED Q'ty
Λd(nm)
/Tc(K)
Luminous Flux Work
Voltage
Power PCB
Dimensions(mm)
Packing
IL-F5050-A15-R-12 Red Top 5050SMD 30LEDs/m 620-630 130-150 DC12V 7.2W/m 500×10×0.22 5m/reel
IL-F5050-A15-Y-12 Yellow 585-595 130-150 DC12V 7.2W/m 500×10×0.22 5m/reel
IL-F5050-A15-B-12 Blue 455-470 110-130 DC12V 7.2W/m 500×10×0.22 5m/reel
IL-F5050-A15-G-12 Green 510-525 230-250 DC12V 7.2W/m 500×10×0.22 5m/reel
IL-F5050-A15-P-12 Pure White 6000-7000K 400-420 DC12V 7.2W/m 500×10×0.22 5m/reel
IL-F5050-A15-W-12 Warm White 3000-3500K 310-330 DC12V 7.2W/m 500×10×0.22 5m/reel
IL-F5050-A15-C-12 RGB 620-630
585-595
455-470
40-50
100-110
35-45
DC12V 7.2W/m 500×10×0.22 5m/reel

Features

1. Waterproof type: Non-waterproof
2. TOP SMD 5050 Super bright LED as lighting sources
3. Different colors are available
4. Input voltage: DC12V
5. Every 3-LED are cuttable for 12V strips
6. Packing: 5m/reel in an anti-static package
7. Waterproof: Non-Waterproof
8. LED Q'ty: 150LEDs/roll
9. PCB Dimension: 500×10×0.22mm
10. View Angle: 120°
11. Certification: CE RoHS

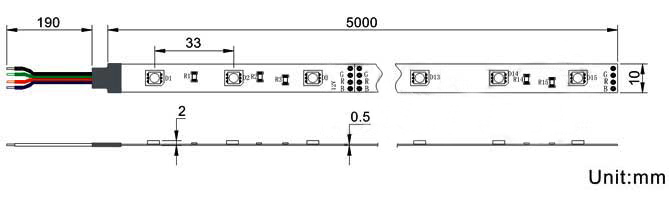

Structure of product:


Different Waterproof type are available :

A type: Non-Waterproof
B type: Waterproof material with Single-Side Glued ------------------------------------------------IP65
C type: Waterproof material with Silicone Tube ------------------------------------------------------IP67
D type: Waterproof material with Silicone Silicone Glue + Silicone U type groove ---------IP68
E type: Waterproof material with Silicone Glue + Silicone Tube --------------------------------IP68
different waterproof type led strip 5050

Different PCB Color are available:

differernt PCB Color available for 5050 led strips

Applications:

﹡ Amusement park, theater & aircraft cabin mood lighting
﹡ Auditorium walkway lighting
﹡ Cove lighting
﹡ Architectural lights for canopy, corridor, window, archway
﹡ Backlight or edge lighting for signage
﹡ DIY lights for home use
﹡ Concealed lighting
﹡ Path and contour marking
﹡ Decorative lights for holiday, event, show, exhibition.

Note of 5050 LED Strip light :

• Please make LED drivers compatible with 5050 LED strips light before use LED strips.
• To use 5050 LED strip light 5M in serial, longer than 5M in parallel.
• Before use, first check the power supply used in compliance with of the power requirements.
• Each roll ask for independent power supply; not to use of multi-volume series use.
