Double Line SMD3528 Flexible LED Strip Light
Double-Line SMD 3528 Flexible LED Strip Light
The newly developed 3528 Double Line SMD Flexible Strip with 15MM wide white PCB provides an affordable, low energy consumption solution where stability and longevity are paramount. It provides almost twice the brightness
|
Part Number
|
Color
|
LED Q'ty
|
Λd(nm)
/Tc(K)
|
Luminous Flux
|
Work
Voltage
|
Power
|
Packing
|
|
IL-DF3528-A120-R-12
|
Red
|
3528SMD 240LEDs/m
|
620~630
|
320~400
|
DC12V
|
19.2W/m
|
5m/reel
|
|
IL-DF3528-A120-Y-12
|
Yellow
|
585~595
|
320~400
|
DC12V
|
19.2W/m
|
5m/reel
|
|
IL-DF3528-A120-B-12
|
Blue
|
455~470
|
280~360
|
DC12V
|
19.2W/m
|
5m/reel
|
|
IL-DF3528-A120-G-12
|
Green
|
510~525
|
400~440
|
DC12V
|
19.2W/m
|
5m/reel
|
|
IL-DF3528-A120-P-12
|
Pure White
|
6000~7000K
|
1400~1440
|
DC12V
|
19.2W/m
|
5m/reel
|
|
IL-DF3528-A120-W-12
|
Warm White
|
3000~3500K
|
1040~1080
|
DC12V
|
19.2W/m
|
5m/reel
|
Features
1. Power 3528 TOP SMD LED as lighting sources.
2. LED strip Color: Pure White and Warm White are available.
3. Input voltage: DC 12V /24V.
4. Can be cut by 12 LED (DC 12V) and 24 LED (DC 24V) and connect again by our accessories
5. With 3M tape on the backside.
6. Packing: 5m/reel in an anti-static package.
7. PCB Dimension: 500×15×0.25mm
8. Certification: CE RoHS
Applications:
Waterproof super bright led strips are widely used in outdoor sign making, underwater decoration and accent lighting, although the applications are limitless given the durability of the product.
Currently available in cool white and warm white, the small form factor and and superior light output make Luna Strip Ribbon ideal for a wide range of applications, such as cove lighting, back lighting, illumination lighting, guidance lighting and channel letter lighting.

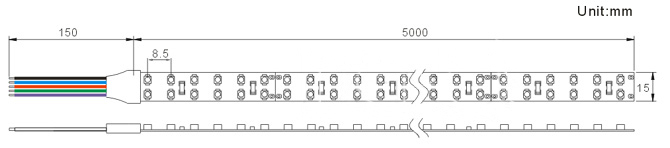

Dimension:

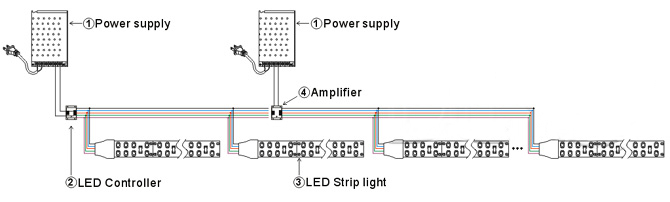

Connect Drawing:
Note:
1、Please make LED drivers compatible with Super Bright LED strips before use LED strips.
2、To use Super Bright LED strips 5M in serial, longer than 5M in parallel.
3、Before use, first check the power supply used in compliance with of the power requirements.
4、Each roll ask for independent power supply not to use of multi-volume series use.
